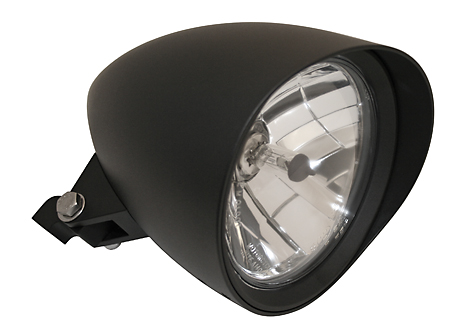

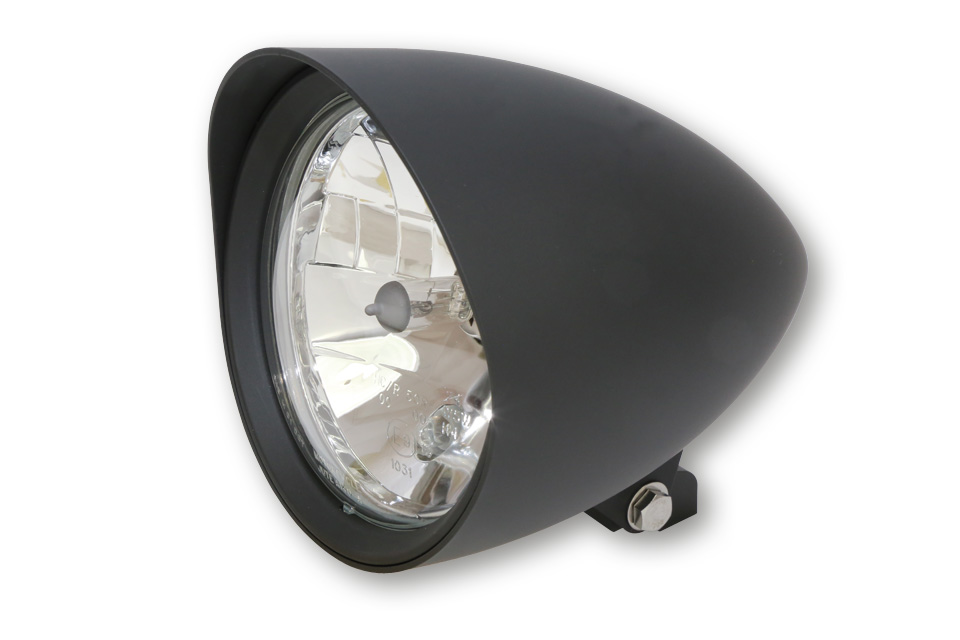

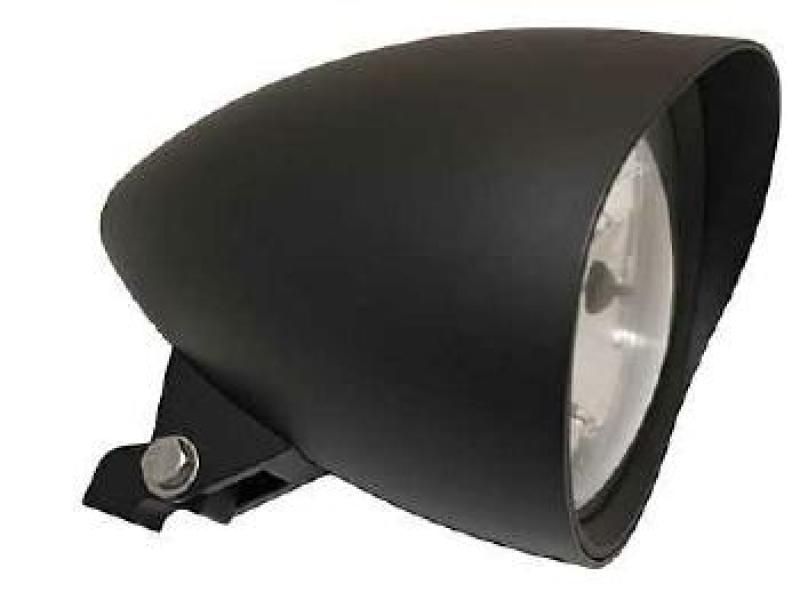

HIGHSIDER 5 3/4 inch main lamp CLASSIC 1 with visor
H4 halogen main headlight comes in a high-quality, black metal housing and nostalgically visor (length: approx. 25 mm) for bottom mount. The headlight is equipped with an asymmetric, diamond-cut reflector - approved only for right-hand driving - inclusive parking light, E-marked.
Spectacular – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Specifications
Illuminant: H4, 12 V 60/55 W
Bottom mount
Diameter: 157 mm
Depth: 220 mm
Bracket from mid-fixing screw to housing rear: 127 mm
Distance bracket in between: 18 mm
Cable assignment
White = low beam
Green = ground H4 bulb
Blue = high beam
Brown = parking light
Black = ground parking light
Delivery content: 1 Pcs. inclusive illuminant
Note: Asymmetric reflector - approved only for right-hand driving.
Optionally available
Spare reflector: Item No. 226-131
